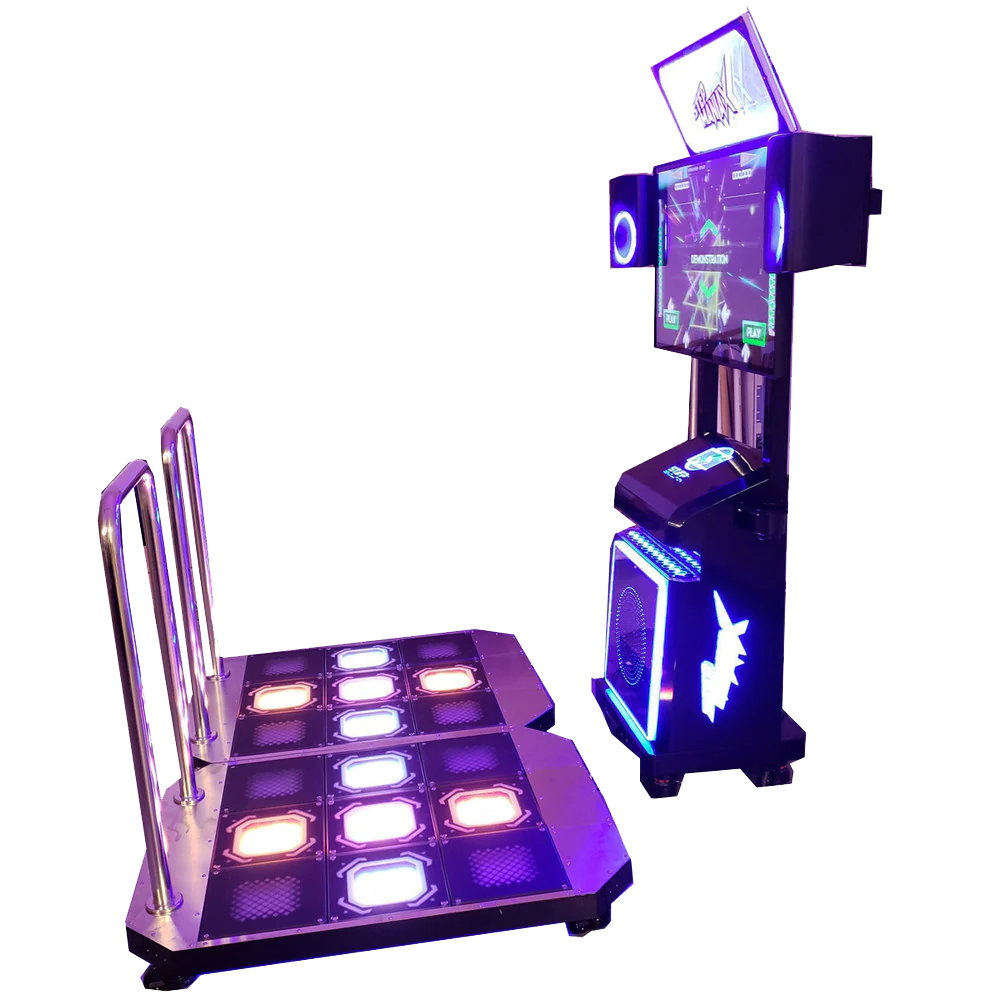

StepManiaX Compact Machine

Description
Reviews (0)

StepManiaX is a universal all-in-one system featuring the latest generation of step-based Exergaming by Step Revolution. StepManiaX utilizes a pressure based platform that users step on to the beat of music.

The newly developed hardware features an industrial design and traditional pressure sensors to create an intelligent input and LED based lighting system. This impressive combination provides indestructible hardware that is visually appealing and with ongoing calibration to always provide an optimum play experience, without the typical maintenance required by traditional dance stage switches.

The FREE StepManiaX software guides users with the familiar cardinal directions (Left, Down, Up, Right), in addition to utilizing a new center position that promotes aerobic movement. A large touchscreen navigation system provides the ultimate user experience that is intuitive and easily manipulated by all generations of users.

As far as difficulty goes: The software features four modes of single difficulty (Beginner, Easy, Hard, Wild) and 3 modes of double difficulty (Dual, Full, Team – which is shared between 2 people) Additionally, there is an abundance of configurable options that players can use to customize speed, effects, and many other settings. Veteran players can also keep track of their latest accomplishment with the StepManiaX mobile app.

The songlist provides a plethora of upbeat, catchy and energetic music that appeals to Western and European audiences. Over 350 songs available (and more being added) gives a wide selection of new tracks and familiar favorites that have been revived from past Step Revolution titles.

StepManiaX is a uniquely addictive experience with large appeal due to it’s catchy music selection and easily approachable design that many dance and step based game solutions struggle to provide. It successfully reinvents the dance game genre and provides endless fun with a large variety of uses including: Home, Health & Fitness, Education, Competitive E-Sports and Family Recreation.

The system includes everything needed to operate with minimal technical knowledge required.

FEATURES:

Designed for mobile events and home market / non coin op usage.
FREE Android based StepManiaX Software
NEW! Ultra-thin 43″ Touch Screen Monitor
Compact console with monitor and speaker mounts designed for mobile, portable, educational and home non coin-op use.
Includes optional top marquee
StepManiaX Game Software and CPU (and network updates)
Additional FREE & Paid Downloadable Content
Complete functionality without the requirement of a network connection
Integrated Hi-Fi 2.1 Sound System with amp.
Built in auto switching 100V to 240V AC, 50Hz – 60Hz 750Watt power supply
1 year warranty on parts
(additional shipping costs excluded)PLUS
(2X) StepManiaX 5th Generation Stages

FEATURES:

NEW! Force Sensing Resistor „FSR“ sensors (4 per panel) with improved automatic calibration for always „perfect“ sensitivity and minimal hardware maintenance
Sensitivity customization via software. (20 FSR Sensors included)
NEW! Adjustable Panel sizes: Support for square or rectangular panels. (rectangular panel kits sold separately)
NEW! Intelligent LED Matrix lighting per panel
Automatic lighting with „step on“ support and assignable colors
NEW! RGB LED motion decal customization via software
NEW! RGB LED floor lighting with color customization via software
NEW! (5) 12mm scratch resistant Super Acrylic Universal Directional Panels
NEW! (4) 16mm scratch resistant Super Acrylic Corner Pass-Through Panels.
NEW! Plug N‘ Play External USB C Connection
(Internal MCU uses USB Micro Connection)
5 panel input (Left, Up, Center, Down, Right):
Interchangeable panel positions for X or + Configurations
(upgradable to 9 panel input via kit sold separately)
(2) Stainless Steel Panels included for use with center position for authentic 4 panel „feel“
(2) Removable stainless steel support bars with improved width/length/thickness.
(2) Support link V brackets included for linking stages.
(doubles configuration)
Vibration resistant / shock absorbing panels.
Built in leveler/locking antivibration support wheels with improved additional locking wing screw.
Can be used on Carpet/Hardwood/Concrete/Linoleum and a wide variety of flooring.
User serviceable
Modular design allows for compact storage, transporting and easy replacement.
Software configuration tool for diagnostics, adjustable sensitivity and customized lighting control.
One year support and warranty on parts: Does not cover scratches, blemishes, damages caused by inconsiderate use or improper maintenance.
(additional shipping costs excluded)

SIZE (When Assembled):
70″ (W) x 74″ (L) x 72″ (H) (without optional marquee)
70″ (W) x 74″ (L) x 84″ (H) (with optional marquee)
Console Only: 34″ (W) x 20″ (L) x 55″ (H) (monitor not mounted)

Weight: (When Assembled):
518 LBS

SHIPPING DIMENSIONS:
(2) wooden crates „Stages“ – 232lbs 49″ x 40″ x 12″
(1) wooden crate „Console“ – 354lbs 55″ x 31″ x 33″
